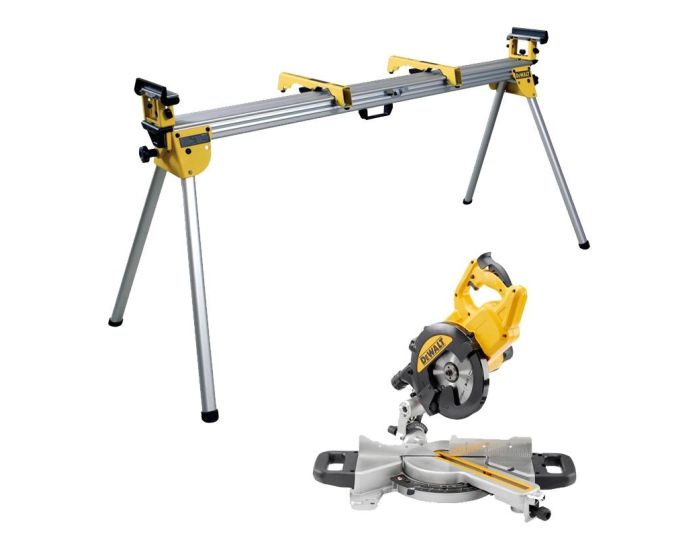

Dewalt DWS774 XPS 240v Corded Mitre Saw 1400w 216mm DWS774XPS + DE7023 Leg Stand

The DW774 replaces the previous established DWS773 mitre saw. The classic saw design improved and updated for the modern user including a 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only) and XPS Shadow line cut indicator. This provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.

The DEWALT DWS774 216mm XPS Slide Mitre Saw has a classic saw design that has been updated for the modern user. With a head lock function that allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation. Integrated positive mitre stops at 15°, 22.5°, 30°, 45° and quick release mitre mechanism up to 50°.

The XPS shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required. The base and fence have been machined to meet the accuracy requirements of the most demanding applications. With fixed left and right hand fences with measuring scale for improved material support and management.

It has a compact internal rail design for huge cutting capacity in a highly transportable format and carry side handles for easy transportation.

Also comes equipped with the universal Dewalt DE7023 mitre saw leg stand, an extendable unit, and from its 1.9m base unit, two telescopic extensions expand the working area up to 3.9m in length, which will support work pieces over 5m in length.

The Dewalt leg stand has a unique bracket mounting system that takes all Dewalt and most competitive mitre saws. These brackets are also available separately meaning that one mitre saw station can be used in conjunction with a variety of machines. These brackets can also even be used with a board to create a large surface for supporting work.

The Dewalt leg stand also features quick release spring-loaded retractable legs, to create a secure working platform on the work site

A convenient carry handle on the underside of the Dewalt leg stand provides easy, balanced single-handed transportation of the stand. Transportation is aided yet further by a shoulder carry strap, which is also available on the Dewalt leg stand.

With the lightweight construction of the Dewalt leg stand and its compact self contained parts, this is the first mitre saw system that provides the user with a truly portable yet versatile and stable mitre saw workstation for site.

Standard Equipment: 2 x work stops/support and mitre saw brackets.

Specifications of the Dewalt DWS774-LX:
Power Input: 1400 w
Power Output: 1100 w
No Load Speed: 6,300/min
Cutting capacity at 90/90°: 250 x 60mm
Cutting capacity at 90/45°: 265 x 48mm
Cutting capacity at 45/90°: 177 x 60mm
Cutting capacity at 45/45°: 190 x 48mm
Blade diameter: 216 mm
Bore size: 30 mm
Max cutting depth: 80 mm
Mitre Cut: 48/48°
Bevel: 48°
Weight: 12kg

And standard equipment included:

TCT tooth saw blade
2 bench mounting bolts
Blade spanner
Material ClampDewalt DWS774 XPS 240v Corded Mitre Saw 1400w 216mm DWS774XPS with DE7023 Leg Stand
Dewalt

Stock code: DWS774240V_DE7023

The DW774 replaces the previous established DWS773 mitre saw. The classic saw design improved and updated for the modern user including a 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only) and XPS Shadow line cut indicator. This provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.

The DEWALT DWS774 216mm XPS Slide Mitre Saw has a classic saw design that has been updated for the modern user. With a head lock function that allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation. Integrated positive mitre stops at 15°, 22.5°, 30°, 45° and quick release mitre mechanism up to 50°.

The XPS shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required. The base and fence have been machined to meet the accuracy requirements of the most demanding applications. With fixed left and right hand fences with measuring scale for improved material support and management.

It has a compact internal rail design for huge cutting capacity in a highly transportable format and carry side handles for easy transportation.



Also comes equipped with the universal Dewalt DE7023 mitre saw leg stand, an extendable unit, and from its 1.9m base unit, two telescopic extensions expand the working area up to 3.9m in length, which will support work pieces over 5m in length.

The Dewalt leg stand has a unique bracket mounting system that takes all Dewalt and most competitive mitre saws. These brackets are also available separately meaning that one mitre saw station can be used in conjunction with a variety of machines. These brackets can also even be used with a board to create a large surface for supporting work.

The Dewalt leg stand also features quick release spring-loaded retractable legs, to create a secure working platform on the work site

A convenient carry handle on the underside of the Dewalt leg stand provides easy, balanced single-handed transportation of the stand. Transportation is aided yet further by a shoulder carry strap, which is also available on the Dewalt leg stand.

With the lightweight construction of the Dewalt leg stand and its compact self contained parts, this is the first mitre saw system that provides the user with a truly portable yet versatile and stable mitre saw workstation for site.

Standard Equipment: 2 x work stops/support and mitre saw brackets.
