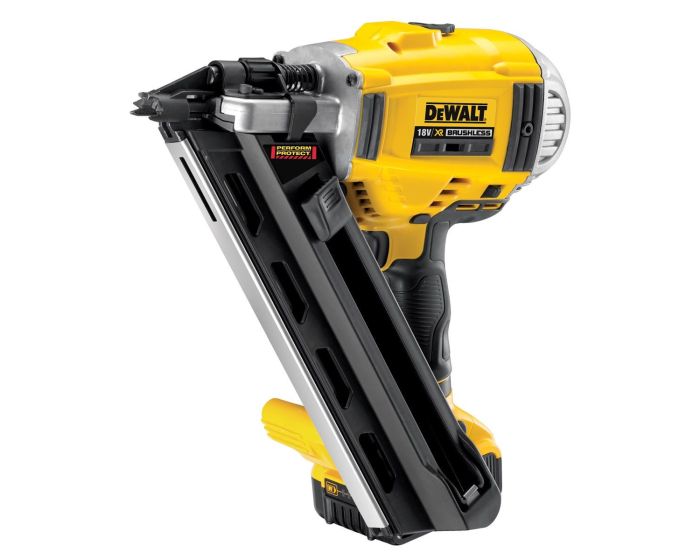

DeWalt XR DCN692N Cordless 18v Brushless 90mm Gasless Framing Nailer - Bare
Stock Code:
DCN692N
View All: Cordless Nailers
View All Dewalt Products
View All: Dewalt Promotions 2024
Regular Price
£279.99
Special Price
£265.99
£221.66
Out of Stock - This Product is Currently Unavailable
Description
An upgrade on the truly innovative nailer from Dewalt in the DCN692N
The new and improved Dewalt DCN690 cordless nailer previously launched by Dewalt is a 20v cordless framing nailer which is slim enough to get in between a 400mm centre stud.
Much like its predecessor the DCN692N joins the ever reliable and Dewalt XR range and runs off a XR 4.0Ah battery. It also boasts a brushless motor, which gives it added capacity and longevity over a brushed equivalent.
One of the main improvements to the Dewalt DCN692 nailer is the addition of speed control which didn't exist on the DCN690. This enables you the user can choose how fast you want the nail gun to fire. With that functionality and a combination of the 5Ah battery which gives you incredible runtimes, and the brushless motor, the DCN692 the ability to fire around 1000 nails per charge of the battery and that is unbelievable for a single charge. The Dewalt DCN692’s motor gives the user the ability to fire a 90mm ring shank nail into soft wood and a 63mm into hard wood which is most impressive for a machine of this type
The Dewalt DCN692 nailer will continue to take the industry by storm as NO FUEL/GAS CELLS ARE REQUIRED and there is no need to regularly service the unit. This can save the user hundreds of pounds a year.
DC692's Features:
18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology
Two speeds - or power levels - to optimise the nailer for firing all lengths of nails
Benefit from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails
BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
Mechanical rather than gas operation offers consistant performance at temperature between -20 and 50 degrees celcius and minimal cleaning/service requirements
Class leading vibration and sound figures, offer fantastic user protection
Versatile 30 - 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails
Reversable belt/rafter hook povides increased portability and versatility on the job-site
Depths can be easily adjusted using the thumb wheel depth adjuster
Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
Gas free operation offers a significant saving in running costs
Tool free stall/jam clearance minimises user down time
Cordless design allows you to work without the inconvenience and safety risk of trailing leads
User can engage contact trip lock-off and prevent accidental dis-charge of fastener
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Dewalt have a range of EC5 rated nails or other brands can be used.
The new and improved Dewalt DCN690 cordless nailer previously launched by Dewalt is a 20v cordless framing nailer which is slim enough to get in between a 400mm centre stud.
Much like its predecessor the DCN692N joins the ever reliable and Dewalt XR range and runs off a XR 4.0Ah battery. It also boasts a brushless motor, which gives it added capacity and longevity over a brushed equivalent.
One of the main improvements to the Dewalt DCN692 nailer is the addition of speed control which didn't exist on the DCN690. This enables you the user can choose how fast you want the nail gun to fire. With that functionality and a combination of the 5Ah battery which gives you incredible runtimes, and the brushless motor, the DCN692 the ability to fire around 1000 nails per charge of the battery and that is unbelievable for a single charge. The Dewalt DCN692’s motor gives the user the ability to fire a 90mm ring shank nail into soft wood and a 63mm into hard wood which is most impressive for a machine of this type
The Dewalt DCN692 nailer will continue to take the industry by storm as NO FUEL/GAS CELLS ARE REQUIRED and there is no need to regularly service the unit. This can save the user hundreds of pounds a year.
DC692's Features:
18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology
Two speeds - or power levels - to optimise the nailer for firing all lengths of nails
Benefit from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails
BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
Mechanical rather than gas operation offers consistant performance at temperature between -20 and 50 degrees celcius and minimal cleaning/service requirements
Class leading vibration and sound figures, offer fantastic user protection
Versatile 30 - 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails
Reversable belt/rafter hook povides increased portability and versatility on the job-site
Depths can be easily adjusted using the thumb wheel depth adjuster
Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
Gas free operation offers a significant saving in running costs
Tool free stall/jam clearance minimises user down time
Cordless design allows you to work without the inconvenience and safety risk of trailing leads
User can engage contact trip lock-off and prevent accidental dis-charge of fastener
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Dewalt have a range of EC5 rated nails or other brands can be used.
No Batteries or Charger included
Specifications
Battery chemistry: XR Li-Ion
Voltage: 18V
Nail Diameter: 2.8 - 3.3 mm
Magazine angle: 30 - 34 °
Magazine loading: Rear - load
Nail Length: 50 - 90 mm
Magazine capacity: Up to 55 Nails
Firing mode: Bump & Sequential
Length: 345 mm
Width: 125 mm
Height: 338 mm
Weight: 4.1 kg
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact energy: 105 J
Temperature Range: -20 to 50°C
Fault indicator: Yes
Total Shipping Weight: 8kg
Voltage: 18V
Nail Diameter: 2.8 - 3.3 mm
Magazine angle: 30 - 34 °
Magazine loading: Rear - load
Nail Length: 50 - 90 mm
Magazine capacity: Up to 55 Nails
Firing mode: Bump & Sequential
Length: 345 mm
Width: 125 mm
Height: 338 mm
Weight: 4.1 kg
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact energy: 105 J
Temperature Range: -20 to 50°C
Fault indicator: Yes
Total Shipping Weight: 8kg
EAN: 5035048461655
