Geberit Duofix 1.12m WC Frame UP100 Delta Cistern & Delta50 Flush Plate & Pan

Stock Code:
FRAMEPANPACK4
£570.94 £475.78
Add to Wish List
Out of Stock - This Product is Currently Unavailable

Description

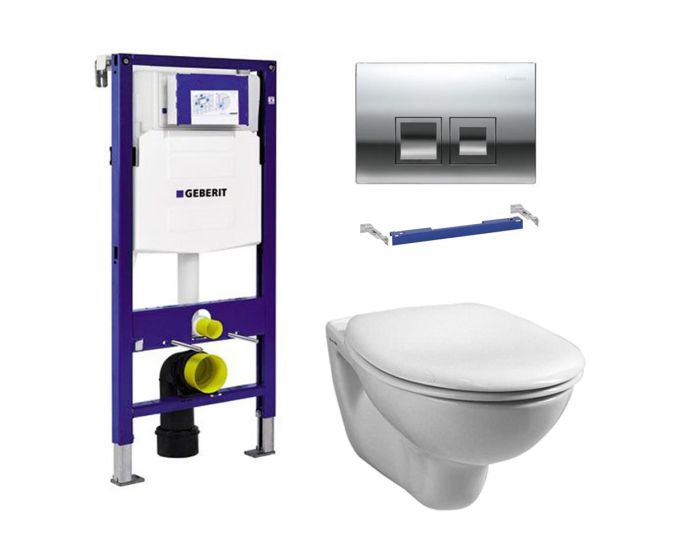

Includes

458.119.21.1 - Duofix WC Frame 1.12m with Delta Concealed Cistern
115.135.21.1 - Delta50 Dual Flush Plate Gloss Chrome
6107 - Vitra wall hung pan
115-003-001 - Vitra toilet seat.

The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.

Hidden behind walls and tiles Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.

The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.

The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.

Frames are available for toilet pans hand washbasins bidets and urinals.

The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.

Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners allowing designers the freedom to create stunning bathrooms without compromise.

Specifications

Specifications of Geberit Duofix WC Frame

For drywall construction
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 62 cm
For floor constructions 0–20 cm
Self-supporting frame, powder-coated
Frame top open
Frame with ø 9 mm drilling holes for fastening in wood frame construction
Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0–20 cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Connection bend can be mounted without tools
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Water supply connection on the rear or top centre
Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
With fastening option for electrical connection

Specifications of Delta50 Dual Flush Plate

Sound absorbing actuator rods, tool-free, fast adjustment.
Actuation force: <20 N.
Requires just a gentle push to operate the desired flush volume of the WC.
Supplied with mounting frame, distance bolts and actuator rods
Suitable for front actuation.
Size W: 246mm x H: 164mm

Specifications of Vitra Wall Hung Pan

 Wall hung WC pan
Horizontal outlet
White
Pan Height: 315mm
Pan Projection: 515mm
Pan Width: 355mm

Specifications of Vitra Toilet Seat

Finish : white
Comes with Metal hinges
Made from duraoplast material
Bottom fixings installation
Width 366mm x Depth 459mm
EAN: 5055995546144

Geberit Warranty

When designing a new bathroom, you want products which you can trust. With over 125 years worth of experience, brand leading Geberit Cisterns and Geberit Frames are renowned for high quality, longevity and reliability ensure they will continue to fulfil their function for decades to come.

Washroom and Bathroom Systems 1 year warranty against failure due to manufacturing defects
Washroom and Bathroom Systems 2 year warranty on electronics
25 years spare part availability guarantee
1 year additional warranty for Sigma80

Geberit 25 years spare part availability
One of the many benefits that Geberit offers is guaranteed availability for spare parts.

Geberit offers for all working parts within Geberit concealed cisterns and flush plates a 25 years spare part availability.

For further information please check the Geberit Website
