Makita AF506 18g Gauge Brad Air Pin Nailer In Case + 6l Air Compressor 116psi 8b
Stock Code:
AF506_COMP
View All: Corded Air Compressors
View All Makita Products
View All: Makita Sale
£255.99
£213.32
In stock - FREE STANDARD DELIVERY to most UK postcodes - Next Day Delivery Available
Description

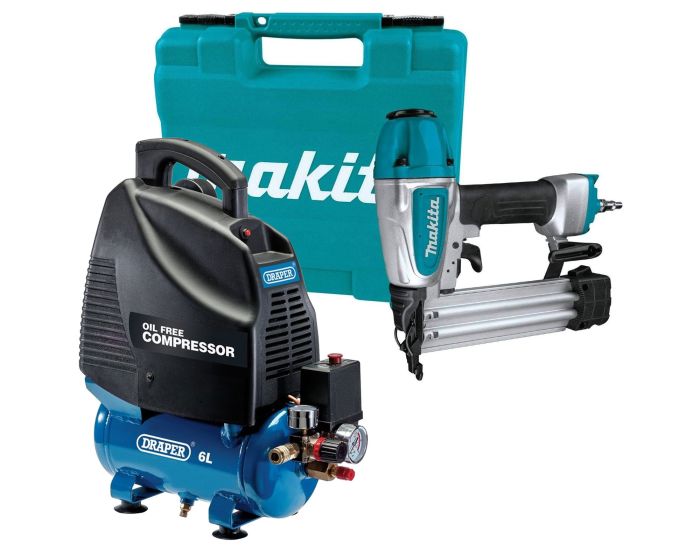

This package includes both the 18g Brad Pin Nailer AF506 with Safety Goggles and Oil Suppy together with the a Draper 6l Air Compressor.
Power and portability, Motor emits no fumes, Can be transported on its side, Longer maintenance free life, Pressure switch, pressure regulator and pressure gauge, Quick euro coupling outlet.
Tank Size 6L
Motor 1.1kw (1.5HP)
Air displacement 6.0cfm (169L/min)
Free air delivered (FAD) 3.46cfm (98L/min)
Input current 13A
Speed 2850rpm
Maximum pressure 116psi (8bar)
Dimensions 485 x 275 x 550xmm
Weight 14kg
The Makita AF506 replaces the popular AF505 Nailer.
The Makita AF506 18 Gauge 2-inch Brad Nailer, features a durable and compact design with ease-of-use features including a narrow-nose design that makes it ideal for a wide variety of finish applications.
The AF506 can operate from 70 to 120 PSI, and drives a range of 18 gauge brad nails from 5/8” to 2-inch, and has a magazine capacity up to 100 nails. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface.
Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient “tool-less” depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 degrees to direct exhaust air away from the user.
The AF506 is engineered for driving a range of 18 gauge brad nails from 5/8" to 2" into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.
The AF506 can operate from 70 to 120 PSI, and drives a range of 18 gauge brad nails from 5/8” to 2-inch, and has a magazine capacity up to 100 nails. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface.
Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient “tool-less” depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 degrees to direct exhaust air away from the user.
The AF506 is engineered for driving a range of 18 gauge brad nails from 5/8" to 2" into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.
Why Choose the AF506 Nailer?
Accuracy : Narrow nose design allows easy nailing access in confined areas
Design : "Tool-less" easy to clear nose for fast and easy nail extraction
Precision: Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications
Convenience : Built-in air duster provides convenient air flow to clear work surface
Design : "Tool-less" easy to clear nose for fast and easy nail extraction
Precision: Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications
Convenience : Built-in air duster provides convenient air flow to clear work surface
AF506 Features
Depth adjustment.
Air duster: By pushing the push button, air from compressor can be bypassed into the air duster nozzle to produce powerful air blast for clearing up jobsite floor or workpiece.
Joist hook
Ergonomic soft grip
Tool-less nail jam clearing.
Window to check qty of remaining nails
Slim nose allows better visibility for easy access to the point you aim at. Enables user to shoot nails into tight spaces.
Depth adjustment.
Air duster: By pushing the push button, air from compressor can be bypassed into the air duster nozzle to produce powerful air blast for clearing up jobsite floor or workpiece.
Joist hook
Ergonomic soft grip
Tool-less nail jam clearing.
Window to check qty of remaining nails
Slim nose allows better visibility for easy access to the point you aim at. Enables user to shoot nails into tight spaces.
Not Sure What Brad Nails You Need For Your Application?
When selecting your nails for your Makita AF506 Pin Nailer always measure 2.5 times the total thickness of material(s) you are fastening.
Compressor Features
Air Receiver CE Approved
Power and portability, Motor emits no fumes, Can be transported on its side, Longer maintenance free life, Pressure switch, pressure regulator and pressure gauge, Quick euro coupling outlet.
Tank Size 6L
Motor 1.1kw (1.5HP)
Air displacement 6.0cfm (169L/min)
Free air delivered (FAD) 3.46cfm (98L/min)
Input current 13A
Speed 2850rpm
Maximum pressure 116psi (8bar)
Dimensions 485 x 275 x 550xmm
Weight 14kg
Includes
Nose adaptor
Hook
Carry Case
Nose adaptor
Hook
Carry Case
-
