Mira Showers Form Mixer Shower Exposed Valve + Riser Rail - 133mm 143mm 153mm
Stock Code:
31982W-CP
View All: Mixer Showers
View All Mira Products
Regular Price
£272.99
Special Price
£250.19
£208.49
In stock - FREE STANDARD DELIVERY to most UK postcodes - Next Day Delivery Available
Description

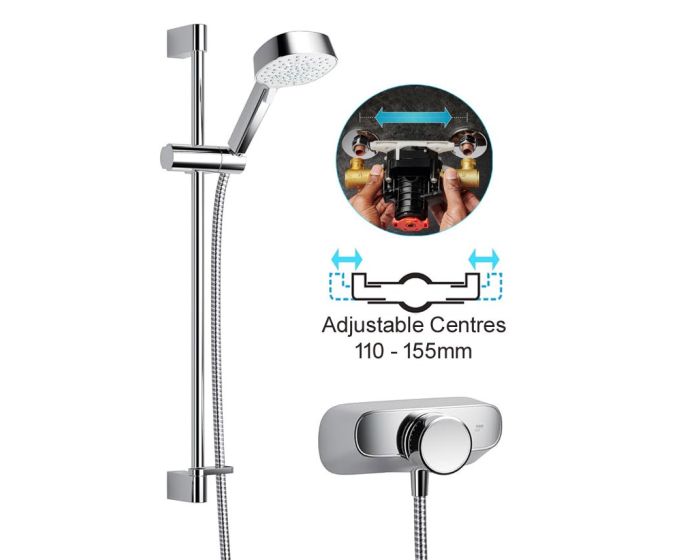

A unique set of Multi-Fit design features enables Mira Form to retrofit 95% of concentric mixers in the market from 110-155mm pipe centres.
Mira Form delivers the ultimate in flexible retrofitting. It’s all thanks to a set of unique Multi-Fit design features that enable it to cover 95% of concentric mixers from 110-155mm.
These include adjustable inlet connections to adapt to existing 15mm pipework, adjustable slide bar brackets so you can re-use existing fixings, a telescopic deluge kit for perfect positioning, and a unique valve shroud design that neatly conceals all existing pipework. It simply slots into place as if the previous mixer shower had never existed. No Fuss. No worries. No problem.
These include adjustable inlet connections to adapt to existing 15mm pipework, adjustable slide bar brackets so you can re-use existing fixings, a telescopic deluge kit for perfect positioning, and a unique valve shroud design that neatly conceals all existing pipework. It simply slots into place as if the previous mixer shower had never existed. No Fuss. No worries. No problem.
Features
A unique set of Multi-Fit design features enables Mira Form to retrofit 95% of concentric mixers in the market from 110-155mm. No Fuss. No worries. No problem.
Mira’s unique mixer design has adjustable inlet connections that retro-fits 95% of concentric mixers with 110–155mm pipe centres.
Slide-bar ends adjust to let you fit the Mira Form in old fixing holes. For added speed and convenience.
The valve shroud design covers up all connections and fixing holes. For a perfect finish – without any snags
A generous 660mm slide bar lets you replace most mixers on the market using existing fixing holes. No mess. No hassle.
With a stainless steel backplate and quality chrome fittings, Mira Form is designed to ensure long-lasting style and showering performance.
Small shelf area on top of the mixer provides space for soap and shampoo bottles
Safe, comfortable showering is assured thanks to Mira’s TMV2-accredited cartridge – enabling precise thermostatic control and a maximum temperature stopost mixers on the market using existing fixing holes. No mess. No hassle.
Mira’s unique mixer design has adjustable inlet connections that retro-fits 95% of concentric mixers with 110–155mm pipe centres.
Slide-bar ends adjust to let you fit the Mira Form in old fixing holes. For added speed and convenience.
The valve shroud design covers up all connections and fixing holes. For a perfect finish – without any snags
A generous 660mm slide bar lets you replace most mixers on the market using existing fixing holes. No mess. No hassle.
With a stainless steel backplate and quality chrome fittings, Mira Form is designed to ensure long-lasting style and showering performance.
Small shelf area on top of the mixer provides space for soap and shampoo bottles
Safe, comfortable showering is assured thanks to Mira’s TMV2-accredited cartridge – enabling precise thermostatic control and a maximum temperature stopost mixers on the market using existing fixing holes. No mess. No hassle.
Replaces your old Mira Shower Mixer with ease!
Most shower mixer valves on the market now have standard pipe centres of 150mm.
However many of the legacy Mira Mixer showers were outside of that. The Mira Form with adjustable centres from 110mm - 155mm makes replacing your old Mira Mini Duo Mixer Shower, Mira Element Mixer Shower, Mira Silver Mixer Shower, Mira Discovery Mixer Shower, Mira Combiforce 415 Mixer Shower and Mira Select Mixer Shower that much easier!
The Mira Form is designed as a multi-fit replacement shower suitable for replacing almost all old Mira Mixer showers with 110mm, 133mm, 140mm, 143mm, 150mm, 153mm and 155mm pipe centres, including:
Mira Element Mixer Shower - 153mm Centres
Mira Silver Mixer Shower: 153mm Centres
Mira Discovery Mixer Shower: 153mm Centres
Mira Combiforce 415 Mixer Shower: 153mm Centres
Mira Select Mixer Shower: 149-153mm Centres
Mira Mira 88 Mixer Shower: 153mm Centres
Mira Excel Mixer Shower (most models): 153mm Centres
Mira Excel adjustable models: 150-155mm Centres
Mira GEM Mixer Shower: 149-154mm Centres
Mira 415 EV Mixer Shower: 153mm Centres
Mira 723 Mixer Shower: 153mm Centres
Mira Combiflow Mixer Shower: 153mm Centres
Mira Fino Mixer Shower: 153mm Centres
Mira Silver Mixer Shower: 153mm Centres
Mira Discovery Mixer Shower: 153mm Centres
Mira Combiforce 415 Mixer Shower: 153mm Centres
Mira Select Mixer Shower: 149-153mm Centres
Mira Mira 88 Mixer Shower: 153mm Centres
Mira Excel Mixer Shower (most models): 153mm Centres
Mira Excel adjustable models: 150-155mm Centres
Mira GEM Mixer Shower: 149-154mm Centres
Mira 415 EV Mixer Shower: 153mm Centres
Mira 723 Mixer Shower: 153mm Centres
Mira Combiflow Mixer Shower: 153mm Centres
Mira Fino Mixer Shower: 153mm Centres
Mira Miniduo EV Mixer Shower (2007-): 110mm Centres
Mira Minilite EV Mixer Shower (2016-): 110mm Centres
Mira Rada V10 Mixer Shower: 110mm Centres
Mira Mode ER Mixer Shower (2001-2013): 110mm Centres
Mira Pace EV (2008-2015): 110mm Centres
Mira Moto EV (2016-): 110mm Centres
Mira Minilite EV Mixer Shower (2016-): 110mm Centres
Mira Rada V10 Mixer Shower: 110mm Centres
Mira Mode ER Mixer Shower (2001-2013): 110mm Centres
Mira Pace EV (2008-2015): 110mm Centres
Mira Moto EV (2016-): 110mm Centres
Specifications
Suitable for rear fed 15mm compression inlet connections
Not suitable for 3/4” bar valve replacement
1/2” BSP male flat face outlet connections
Reverse inlet supported - remove valve body from manifold, rotate and refit
Cold water range: 5-25°C
Hot water range: 50-85 °C (recommended operating temperature of 60-65 °C)
Minimum pressure: 0.1 bar (1 metre head)
Maximum pressure: 5 bar (50 metre head)
Maximum static pressure: 10 bar (100 metre head)
Handset flow rate: 3 L/min at 0.1 bar, 7.7L /min at 0.5 bar
Supplied with 9 L/min flow regulators
Temperature stability: +/- 2 °C
Automatic shutdown within 2 seconds
Pipe centres adjustment: 110–153mm
Not suitable for 3/4” bar valve replacement
1/2” BSP male flat face outlet connections
Reverse inlet supported - remove valve body from manifold, rotate and refit
Cold water range: 5-25°C
Hot water range: 50-85 °C (recommended operating temperature of 60-65 °C)
Minimum pressure: 0.1 bar (1 metre head)
Maximum pressure: 5 bar (50 metre head)
Maximum static pressure: 10 bar (100 metre head)
Handset flow rate: 3 L/min at 0.1 bar, 7.7L /min at 0.5 bar
Supplied with 9 L/min flow regulators
Temperature stability: +/- 2 °C
Automatic shutdown within 2 seconds
Pipe centres adjustment: 110–153mm
EAN: 5013181126334
Mira Showers guarantee products against defects in materials or workmanship from the date of purchase.
Within the guarantee period we will resolve defects, free of charge, by repairing or replacing parts or modules. To be free of charge, service work must only be undertaken by Mira Showers or our approved agents in Northern Ireland and Republic of Ireland.
The guarantee applies solely to the original installation and to the original purchaser only.
2 Year Guarantee
Mira Mixer Showers
3 or 5 Year Guarantees - Please Check your specific product as this does vary depending on the type of mixer shower
Mira Power Showers
1 Year Guarantee
Mira Shower Pumps
3 or 5 Year Guarantees - Please Check your specific product as this does vary depending on the type of pump
Should you have a problem with your Mira product in the above time frames then please leave it installed and contact Mira on 0844 571 5000.
