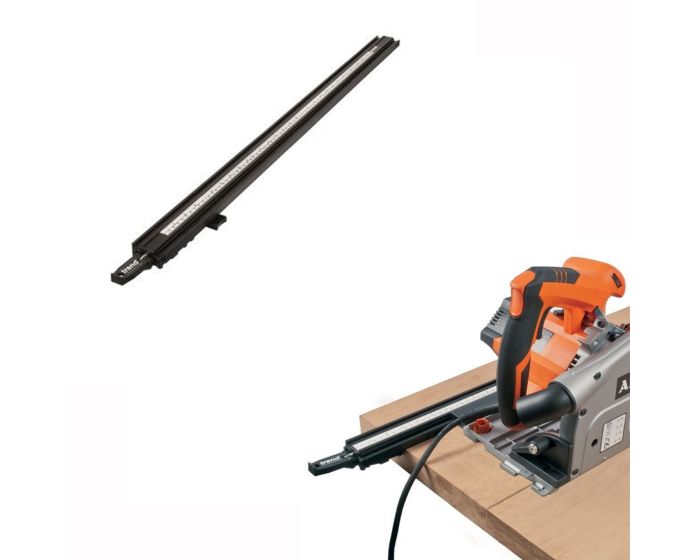

Trend VJS/CG/36 Straight Cut Clamp Guide 36in Varijig Router Cutting Guide 92cm

Stock Code:
VJS/CG/36

£33.31 £27.76
Out of Stock - This Product is Currently Unavailable

Description

The Guide Clamp features integral clamping jaws and a locking lever that provides quick way of clamping the guide batten. It is ideal for holding and clamping workpieces and the aluminium extrusion incorporating T-slots.

The clamp is fitted with a metric/imperial scale for setting lengths and stop positions and the scale can be be positioned by removing 20mm of the self-adhesive backing.

Max clamp length 36 inches (915 mm)
Min clamp length 1/2 inch (12.7 mm)
Extrusion width 54mm
Extrusion height 15.8mm
Overall length 1140mm
Length fixed jaw to end of handle 125mm
Length max position of sliding jaw to clamp end 98mm
Sliding jaw finger wing width 73mm
